Overview Of FL7000W Computer Phase Microscope

The FL7000W computerized metallographic microscope is a three eye upright metallographic microscope suitable for microscopic observation of opaque objects. This instrument is equipped with a falling beam illumination device, a long-distance flat field achromatic objective lens (without cover glass), a large field eyepiece, and a built-in polarizing observation device. It has the characteristics of clear images, good contrast, and easy operation, and is an ideal instrument for research in metallurgy, mineralogy, precision engineering, electronics, and other fields. Suitable for use in schools, scientific research, factories, and other departments.

Observation system

Three eye observation tube, adjustable single view, tube tilted at 30 °, can be connected to a camera device.

mechanical stage

Double layer mechanical loading platform, size: 185 * 140mm; movement range: 75mm * 50mm, moderate design concept, making it more convenient and comfortable for users to operate the loading platform.

Falling light illumination system

12V 20W halogen lamp with adjustable brightness. Built in field of view aperture, (yellow, green, blue, frosted glass) color filter conversion device, push-pull polarizer

FL7000W Configuration Table Of Computer-W Gold

Note: "." is standard; "O" is selected

FMIA2025 Genuine Metallographic Image Analysis Software

FMIA2025 Metallographic Image Analysis Software is a brand-new metallographic image analysis software system developed by our company. We developed it by first integrating the metallographic testing needs of current casting enterprises, auto parts manufacturers, heat treatment companies, bearing steel industry, power system industry, railway parts industry, and various relevant testing companies. Then, to improve product qualification rates and help enhance the testing capabilities of various laboratories, we collected requirements and suggestions from experts in various industries, and finally launched this system.

The FMIA2025 version of the Metallographic Image Analysis Software has undergone a comprehensive revision and upgrade. The system covers a large number of domestic and international metallographic testing standards, and integrates both quantitative and qualitative analysis functions. It has added new features such as depth-of-field synthesis and image field stitching. With a concise interface, it allows for continuous shooting of multi-field images and centralized microstructural analysis of images. The operation is more convenient, eliminating the cumbersome steps of previous software versions and making testing faster and more efficient.

We have created a brand-new set of "professional-accurate-efficient" metallographic analysis tool systems to simplify metallographic analysis.

The national standard library of the software system contains hundreds of categories, basically covering commonly used metallographic standards andmeeting the metallographic analysis and testing requirements of most institutions. Relevant categories can be opened according to the needs of different industries to satisfy industry testing requirements. All modules can be used for free for life, and standard upgrades are also provided free of charge for life.

In view of the continuous increase in new materials and imported grade materials, for materials and evaluation standards that have not yet been included in the software, customized inclusion and entry can be provided separately.

Product Advantages and Function Introduction of FMIA2025 Metallographic Image Analysis Software：

● Batch Shooting, Acquisition and Archiving of Video Images: It offers multi-image batch processing functions such as batch shooting, batch name setting, batch saving, and batch fixed-magnification printing. These functions make the batch sample inspection process more convenient and efficient.

       ● Camera Settings: It supports the adjustment of functions including exposure time, gain, sharpness, saturation, gamma value, contrast, brightness, white balance, and black balance.

● Image Calibration: The calibration function has been fully upgraded, enabling one-click completion of parameter calibration for all objective lenses. Compared with the original calibration method, the new calibration method is more convenient and faster to operate.

● Image Processing Functions: It includes functions like color separation, grayscale conversion, threshold segmentation, binarization processing, image enhancement, inverse adjustment, sharpening adjustment, scratch and stain removal, and image histogram.

        ● Fixed-Magnification Printing Function:It supports functions including fixed-magnification printing of multiple images, custom image naming, scale parameter setting, export to PDF/Word/Excel formats, and print preview.

● Image Measurement and Archiving: A variety of measurement tools are available (including distance, angle, included angle between two lines, rectangle, distance from point to line, ellipse, polygon, distance between parallel lines, three-point arc, three-point circle, etc.). It supports drawing arrows, adding text annotations, inserting auxiliary lines, and adjusting line widths. Multiple length units are selectable; the color, size, and style of the font for measurement data are also customizable. Measurement data can be summarized and exported as an Excel spreadsheet.

● Microstructure Analysis Function: The software library offers a wide range of standard detection modules, covering microstructure analysis standards such as GB/ASTM/ISO/DIN/QC/JB/DL/TB/SS. Standard numbers in the software library can be updated, and new standards are available for free upgrade. It provides three metallographic rating functions: automatic, comparative, and auxiliary. The function is easy to use, concise, efficient, and ensures accurate and reliable measurement.

● Advanced Function Modules:EDF (Extended Depth of Field) Function, Image Stitching Function / Image Mosaicing Function

● Advanced Customization Functions: Customized microscope motorized stage control function, image confocal function, 3D optical mapping function, image database function, etc.

● AI Microstructure Analysis Function: Customizable AI microstructure analysis modules are available. It utilizes artificial intelligence to complete the entire microstructural analysis and detection process, enabling automatic identification and analysis of material microstructures. The operation process is simple, which reduces the labor intensity of personnel and improves the efficiency of material detection.

● National Standard Image Library: It contains hundreds of national standard images for customers' learning and reference.

● Diversified Report Templates: It automatically generates metallographic microstructure analysis reports with both pictures and texts. Users can choose to generate report formats with a single module or multiple modules. Report templates allow modifications such as adding company logos, company names, and testing processes. Customized report templates can be created according to specific needs.

Composition of FMIA2025 Version Metallographic Analysis Software System:

1. Software Program FMIA2025 (USB Flash Drive);

2. Encryption Dongle: USB Type + Dynamic Code Verification;

3. Written Materials: User Manual (Stored on the USB Flash Drive);

4.Micrometer Scale: Graduation Value 0.01mm.

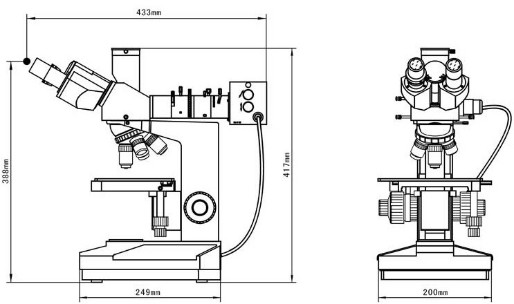

FL7000W Computerized Metallographic Microscope Dimensional Drawing：
