Overview of FZ-51XY Fully Automatic MetallographicMicroscope

The FZ-51XY fully automatic metallographic microscope features excellent imaging performance and a comfortable operating experience, providing customers with cost-effective metallographic analysis and industrial inspection solutions. The X-Y motorized stage enables full-size scanning of images and high-performance image synthesis.

High-precision internal positioning 5-hole bright field encoding converter, brightness memory function.

The coded objective turret integrates the microscope's hardware settings with our company's FCL-RS image measurement software. The magnification of the objective is displayed on the screen, and the calibration values recorded in the software are automatically adjusted when switching magnifications, eliminating measurement errors caused by forgetting to switch the software magnification.

The brightness memory function can remember the illumination brightness when using each objective lens. When different objective lenses are switched, it automatically adjusts the light intensity, reducing visual fatigue and improving work efficiency.

The newly designed integrated T-shaped frame, made of all-metal high-pressure die-casting, has excellent stability. When observing at high magnification, the image plane remains stable without jitter, further ensuring the detection accuracy of high-magnification measurements.

The epi-illuminator uses a Koehler illumination system, with a field diaphragm and an aperture diaphragm, and pre-set slots for polarizers, analyzers, and filters. A single 10W LED warm white light illumination can minimize the visual fatigue of observers to the greatest extent.

The field stop and aperture stop use a pull rod device with adjustable centers, which can flexibly adjust the size of the illumination range and effectively avoid the influence of stray light on the image.

The polarizer and analyzer can achieve simple polarized light observation

Configuration Table for FZ-51XY Fully Automatic Metallurgical

FMIA2025 Genuine Metallographic Image Analysis Software

FMIA2025 Metallographic Image Analysis Software is a new set of metallographic image analysis software system developed by our company. Combining the current needs of foundry enterprises, auto parts enterprises, heat treatment enterprises, bearing steel industry, power system industry, railway parts industry, and various related inspection companies for metallographic inspection, in order to improve product qualification rates and boost the inspection capabilities of various laboratories, we have collected the demand opinions of Subject-Matter Experts from various industries.

The FMIA 2025 Edition Metallographic Image Analysis Software has undergone a complete overhaul and upgrade. The system encompasses a large number of domestic and international metallographic testing standards, integrating quantitative analysis and qualitative analysis into one. It has newly added depth of field synthesis function and image field stitching function, with a simple interface. It can continuously capture multi-field images, centrally conduct image structure analysis, is more convenient to operate, eliminates various cumbersome steps of the previous software, and makes testing faster and more efficient.

A brand-new "professional-precise-efficient" metallographic analysis tool system has been developed to simplify metallographic analysis. When used in conjunction with an electric stage, it enables automatic scanning, autofocusing, automatic stitching, automatic pore measurement, data statistics, and report output.

The national standard library of the software system contains hundreds of categories, basically covering commonly used metallographic standards and meeting the requirements of metallographic analysis and inspection for most units. Relevant categories are specified and opened according to the needs of different industries to meet industry inspection requirements. All modules can be called for free for life, and standards can be upgraded for free for life. Given the continuous increase of new materials and imported grade materials, materials and evaluation standards not yet entered in the software can be customized and entered separately.

Introduction to the Advantages and Functions of FMIA2025 Metallographic Image Analysis Software Product:

● Batch shooting, collection, and archiving of video images : Multi-image batch processing functions such as batch shooting, batch naming, batch saving, and batch fixed-magnification printing make the batch sample inspection process more convenient and efficient.

● Camera Settings: Functional settings such as exposure time, gain, sharpness, saturation, gamma value, contrast, brightness, white balance, black balance, etc.

● Image Calibration: The calibration function has been completely upgraded, allowing all objective lens parameter calibrations to be completed with a single click. Compared with the original calibration method, the new calibration method is more convenient and faster to operate.

● Image processing functions: Color separation, canary release conversion, threshold segmentation, binarization processing, image enhancement, inversion adjustment, sharpening adjustment, scratch and stain processing, image histogram, etc.;

● Fixed-magnification printing function: Functions such as multi-image fixed-magnification printing, custom image naming, scale parameter setting, exporting PDF/Word/Excel, and print preview.

● Image Measurement and Archiving: Diverse types of measurement tools (including distance, angle, angle between two lines, rectangle, point-line distance, ellipse, polygon, parallel line distance, three-point arc, three-point circle, etc.), ability to draw arrows, annotate text, add auxiliary lines, modify line width, multiple length units to choose from, multiple options for font color, size, and style of measurement data, and the ability to summarize and export test data to an Excel spreadsheet.

● Organizational analysis function: The detection standard modules in the software library are diverse, including organizational analysis standards such as GB/ASTM/ISO/DIN/QC/JB/DL/TB/SS. The standard numbers in the software library are upgraded, and new standards can be freely upgraded. It has three metallographic rating functions: automatic, comparative, and auxiliary. It is convenient, simple, and fast to use, with accurate and reliable measurements.

●Advanced Function Modules:EDF Depth of Field Expansion Function, Image Stitching Function

●Advanced customization features:Customize microscope motorized stage control functions, image confocal, 3D light mapping, image database, etc.

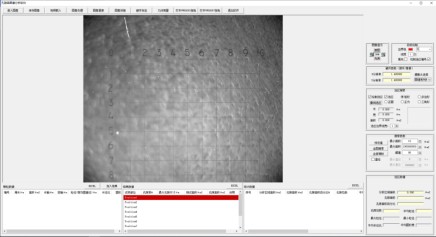

● Image stitching function: Set the stitching parameters and image type, click "Auto Stitch", and the image stitching will be automatically completed.
