FZ0756U Digital Microscope All-in-One Machine

The FZ0756U Series Zoom USB Digital Microscope All-in-One Machine, as shown in Figure 1, consists of an 8x zoom lens body, a USB interface camera, and an LED ring light source. The USB interface camera module can directly complete video and image capture by connecting to a computer via a USB interface. The illumination light source module requires no external power supply and is directly connected to the USB interface camera module through the optical zoom objective lens body.

WhatsApp: +86-18817843866

TEL: +86-18817843866

Email: rastecaec@gmail.com

Product Description

About Us

Get a Quote

Introduction to FZ0756U Series Zoom USB Digital Microscope All-in-One Machine

The FZ0756U Series integrates the zoom monocular microscope, USB interface camera, and LED illumination light source into one organic unit. No selection or installation is required; the FZ0756U Series can be used directly by connecting it to the USB interface of a computer.

The FZ0756U Series meets the needs of digital imaging observation, inspection, and measurement in fields such as modern electronic equipment, semiconductors, lasers, LEDs, LCDs, industrial online inspection, and biology.

FZ0756U Configuration Parameters

Parameter Category	Specification
Optical Body	Zoom range: 0.7X - 5.6X
Working Distance	37.5mm - 160mm (determined by the auxiliary objective lens)
Numerical Aperture (NA)	0.018 - 0.092 (when using W100, 1x auxiliary objective lens)
Resolution	18.6μm - 3.65μm (when using 1x auxiliary objective lens)
Field of View	0.99mm - 34.28mm
Optional Objective Lenses	0.5x, 0.75x, 1x, 1.5x, 2.x (selectable based on requirements)
Other Optional Objectives	Commercial infinite microscope objectives (both biological and metallographic objectives are applicable)
Body Dimension	188mm x 52mm
Bracket Interface	Standard 50mm

Optical Parameters of Optional Auxiliary Objective Lenses (Wxxx Series) for FZ0756U Series

Auxiliary Objective	Parameter	TV Lens 0.5X (1/3" Sensor) TV050
Auxiliary Objective	Parameter	Low Magnification	High Magnification
W100, 1.0X (80mm WD)	Magnification	0.35X~2.80X
	Linear Field of View	17.14mm	2.14mm
	NA	0.018	0.092
W050, 0.5X (160mm WD)	Magnification	0.18X~1.40X
	Linear Field of View	34.28mm	4.28mm
	NA	0.009	0.046
W075, 0.75X (105mm WD)	Magnification	0.26X~2.10X
	Linear Field of View	20.81mm	2.86mm
	NA	0.013	0.069
W150, 1.5X (51.5mm WD)	Magnification	0.53X~4.20X
	Linear Field of View	11.43mm	1.43mm
	NA	0.026	0.138
W200, 2.0X (37.5mm WD)	Magnification	0.70X~5.60X
	Linear Field of View	8.57mm	1.07mm
	NA	0.035	0.182
Remarks	1. When using coaxial light illumination, vignetting may occur at low magnifications.2. When using an infinite conjugate microscope objective as the auxiliary objective (a microscope objective adapter may be required), the magnification, field angle, and NA value of FZ0756 are determined by the parameters of the microscope objective.

FZ0756U Series Camera Module Specifications

Figure 2 Rear Panel Interfaces of FZ0756U Series Continuous Zoom USB Digital Microscope All-in-One Machine

Ordering Code	Sensor & Size (mm)	Pixel (μm)	G Responsivity	Dynamic Range	SNRmax	FPS/Resolution	Binning	Exposure
U510A (New)	5.1M/IMX335 (C)1/2.8 Inch (5.18x3.89)	2.0x2.0	505mV	70 dB	43dB	26@2592x194426@1280x96026@640x480	1x11x11x1	0.1-2000 ms

C: Color Camera

	Hardware Configuration
	Spectral Response Range	380-650nm (with infrared cut filter)
	White Balance	Auto White Balance / ROI White Balance / Manual Temp-Tint Adjustment
	Color Reproduction Technology	Ultra-Fine Hardware Color Processing Engine
	Capture/Control SDK	Multi-platform SDK for Windows/Linux/macOS/Android (Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain)
	Recording Mode	Image and Video
	Camera Operating Environment
	Operating Temperature (°C)	-10 ~ 50
	Storage Temperature (°C)	-20 ~ 60
	Operating Humidity	30 ~ 80% RH
	Storage Humidity	10 ~ 60% RH
	Power Supply	The camera is powered via USB 2.0 interface
	Software Operating Environment
	Operating System	Microsoft® Windows® XP/Vista/7/8/10 (32 & 64 bits)
	Computer Configuration	- CPU: Intel Core 2 2.8GHz or higher- RAM: 2GB or more- USB Interface: USB 2.0 High-Speed Interface- Monitor: 17” or larger- CD-ROM
	Lighting Module
	Ring Light Source	Dimmable LED Ring Light Source (Wireless) (Model: TFZ0756DRL-NPC)
	Ring Polarized Light Source	Dimmable LED Ring Polarized Light Source (Wireless) (Model: TFZ0756DRPL-NPC)
	Coaxial Lighting Source	Dimmable LED Coaxial Light Source (Wireless); Coaxial Light Adapter (Model: TFZ0756CL_NPC)
	Power Supply Method	Integrated power supply, eliminating tangled power cords and enabling flexible sample observation
	Installation Method	Quick second-level magnetic adsorption installation, convenient and simple
	Brightness Adjustment	Synchronous hardware & software brightness control via 3-way multi-function dial and software interface, ensuring smooth operation

Connection Method for FZ0756U Series：

Except for the all-in-one machine, users only need a computer and the USB 2.0 cable provided with the all-in-one machine.

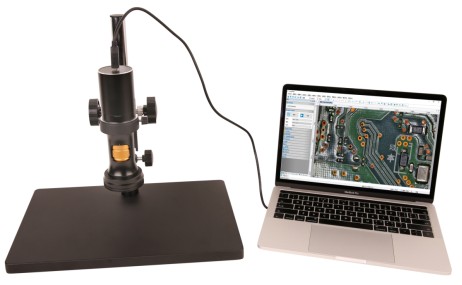

Figure 3 Connection Between FZ0756U Series and Computer
