Overview of the JSZ8-W Trinocular Continuous Zoom Stereo

    The classic design of the JSZ8 Trinocular Continuous Zoom Stereo Microscope ensures better stability of the body. Its excellent optical performance, complete accessories, and diverse combination configurations meet the online inspection needs of modern biology, medicine, scientific research, and the modern electronic industry.

High-Quality Optical System

Optical components coated with special films create a high-quality optical system.

Wider Magnification Range

Equipped with a continuous zoom objective lens of 0.8X～5X (6.25:1), the standard magnification ranges from 8X to 50X. With optional eyepieces and auxiliary objective lenses, a magnification of 4X-100X can be achieved.

Integrated Illumination

Adopting a new type of high-brightness illumination integrated with the lens frame design, the upper and lower light sources are equipped with independent adjustment switches, ensuring uniform, long-lasting, and stable image plane brightness at any magnification.

Configuration Table of JSZ8-W Trinocular Continuous Zoom Stereo

FEG Series Digital Microscope Camera

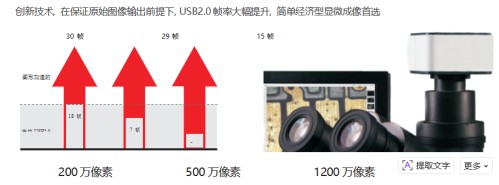

Innovative technology ensures the output of original images while significantly increasing the USB 2.0 frame rate, making it the preferred choice for simple and cost-effective microscopic imaging.

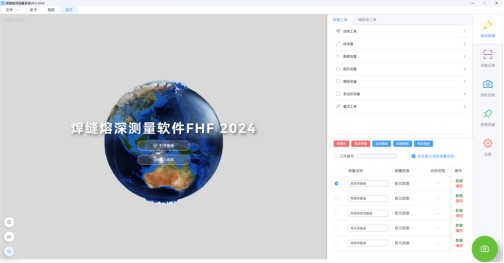

FCL-RS Metallographic Image Measurement Software

Overview

FCL-RS Metallographic Image Measurement Software is the basic version of image measurement software launched by our company, supporting multiple developable functions. In addition to basic capture and measurement capabilities, it includes automatic panoramic image stitching, video EDF (Extended Depth of Field) extension, video overlay of time and scale bars, accurate layer fusion of measurement data and images, and support for saving in various image file formats.

Features

l Real-time static image capture: Capture static images as per user requirements.

l Multi-format image saving: Save images in JPG, BMP, PNG, and TIF formats.

l Fast and intuitive calibration: Calibrate using scale lines for precise measurement foundation.

l Diversified image processing: Support processing for the entire image or specific target regions.

l Advanced measurement functions: Calculate key geometric parameters including perimeter, width, radius, circumference, and angle.

l Real-time dynamic stitching: Achieve panoramic sample shooting and expand the visible field of view effectively.

l Multi-depth image fusion: Merge images captured at different depths of field into a single high-definition clear image.

Basic Functions

1. Image Shooting

Support real-time static image capture, batch image collection and saving, as well as batch addition of scale bars and other annotation texts.

2. Geometric Measurement

Provide a variety of measurement tools including distance, rectangle, circle, polygon, polyline length, angle, straight line included angle, radian, and point-to-center distance to meet users' basic geometric measurement needs and obtain relevant measurement data.

Measured data can be automatically fused with images, intuitively displaying the accuracy of the measured positions.

3. Dynamic Stitching

For customers requiring inspection of a larger field of view, the software is equipped with an image stitching function. Users can move the microscope's X-Y platform to meet the demand for capturing images with an expanded field of view, resolving the inconvenience of being unable to take complete shots due to the limited visual range of the microscope.

4. Dynamic EDF (Extended Depth of Field) Shooting

For samples with uneven preparation that cannot be focused uniformly, the software offers a dynamic EDF shooting function. By adjusting the microscope's Z-axis fine focusing knob, clear details of the sample are continuously added to the dynamic EDF display window for real-time updates. The software automatically records sharp images at different depths of field and merges them into a single high-definition image.

5. Video Overlay of Time and Scale Bars

For users needing to display scale bars on images, the software provides a video overlay function. Users can optionally display scale bars, magnification, date, and time as required, enabling automatic fusion of captured images with these elements. This eliminates the need for users to manually add scale bars after each shot, streamlining workflow efficiency.
