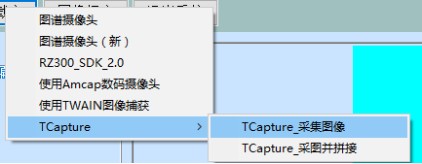

1. Video Image Acquisition and Manual Image Stitching

(VideoImageAcquisition)

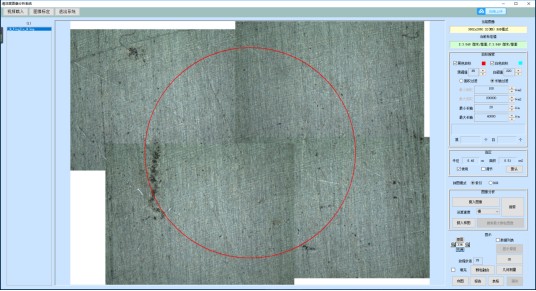

(Manual Image Stitching)

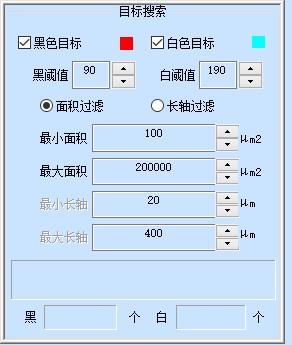

2. Set Detection Parameters

In practical operations, the conditions of samples are relatively complex. It is necessary to adjust the detection parameters to identify the required particles.

3. ROI Selection: The software only analyzes particles within the selected region.

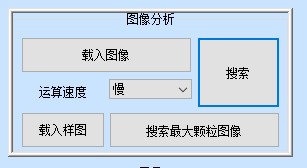

4. Image Analysis:

· Load Image: Import images saved on the computer hard disk.

· Load Sample Image: Import preset cleanliness images of the software for testing software functions.

· Operation Speed: Adjust the particle detection duration.

· Detection: Start detecting particles.

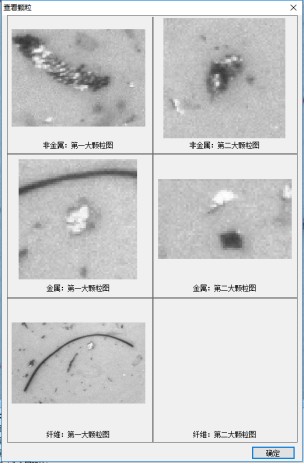

· Detect Largest Particle Images: Identify the images of the largest and second-largest particles among metals, non-metals and fibers.

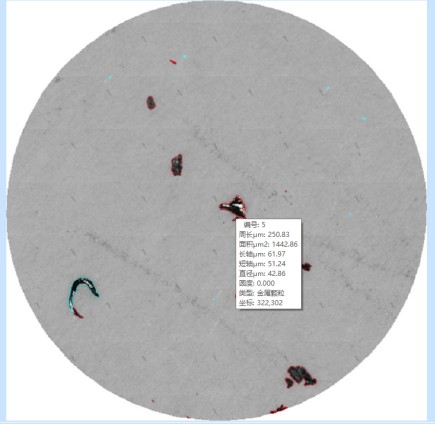

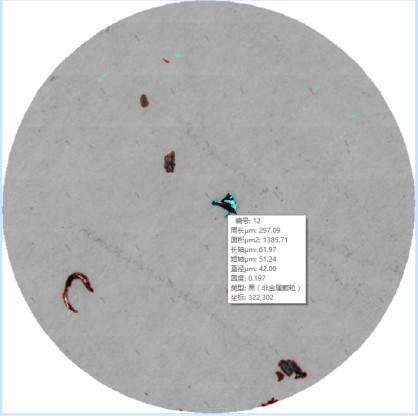

· Right-click on the analyzed image to add, delete particles or modify particle attributes

（Remove Particles, Modify Particle Attributes and Granulometry Segmentation）

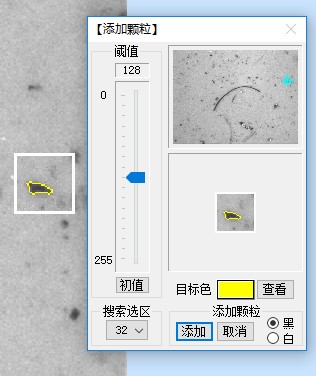

（Method 1 for Adding Particles）

（Method 2 for Adding Particles (Set in System Settings)

5.Particle Merging:If the positions of metal and non-metal particles overlap, this function enables the software to merge the two particles into a single metal particle.

(Before Particle Merging)

(After Particle Merging)

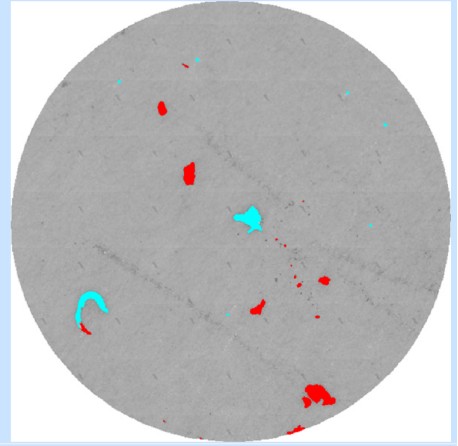

6.Particle Filling:

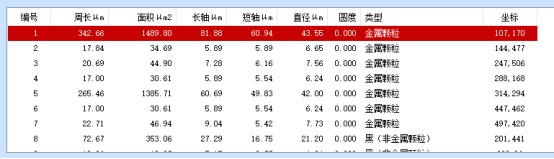

7.Analytical Data List:

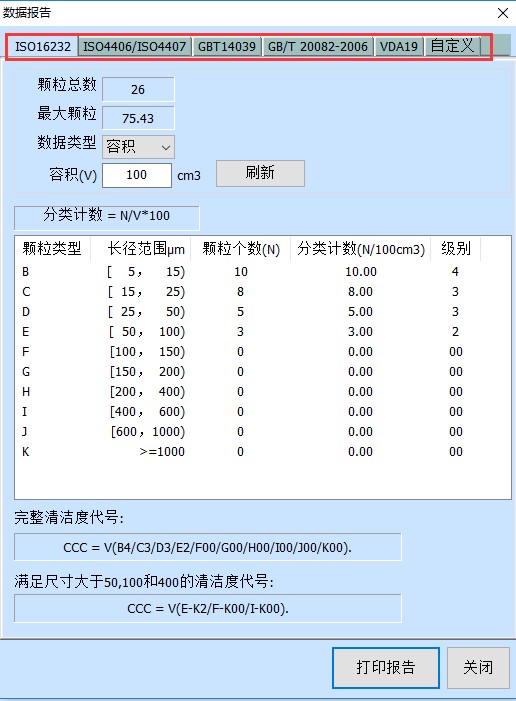

8.Support for Multiple Standards

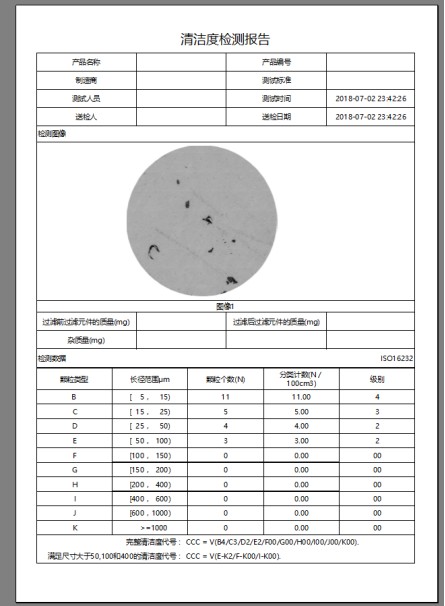

9.Reports in WORD, PDF and EXCEL formats are available

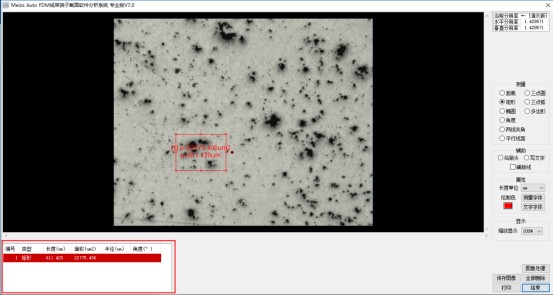

10.Geometric Measurement

Multiple measurement tools are available for geometric measurement.
