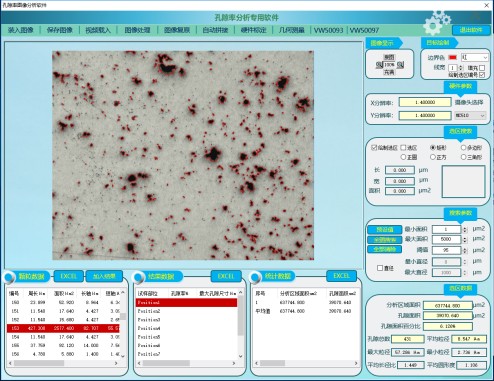

Software Main Interface

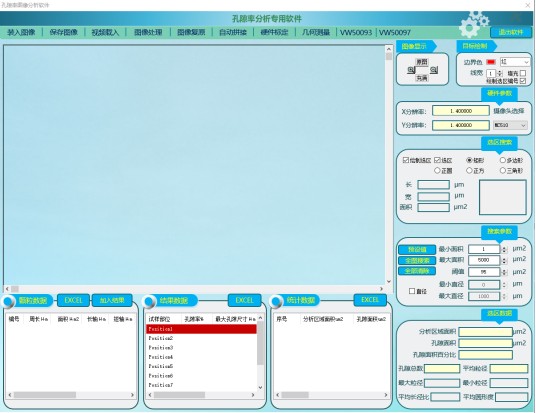

（Overall Interface of the Software）

1、After image capture is completed, the selection of analysis area provides multiple selection tools including rectangle, polygon, circle, square, and triangle. The software will automatically perform a porosity analysis on the selected area after the selection is finished.

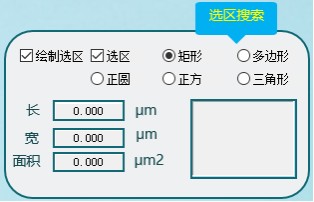

（Selection Tools）

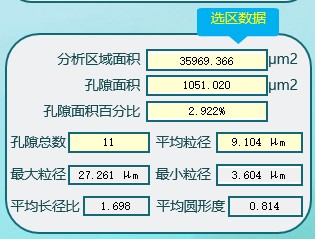

（Analysis of Selected Area）

2、Porosity Analysis:

It can calculate data such as perimeter, area, major axis, minor axis, equivalent circle diameter, aspect ratio, and circularity for each pore.

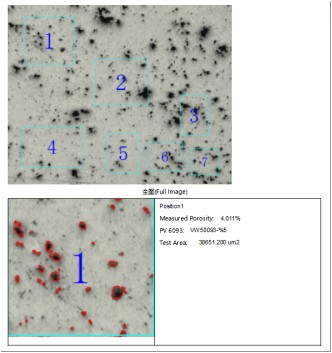

3、Standard VW50093

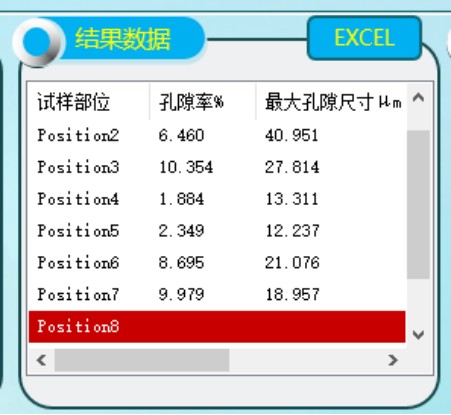

Result List: 10 preset position list slots are available. After analyzing the data of each selected area, it can be added to a position data row, and parameters such as porosity, maximum pore size, and test area will be calculated automatically.

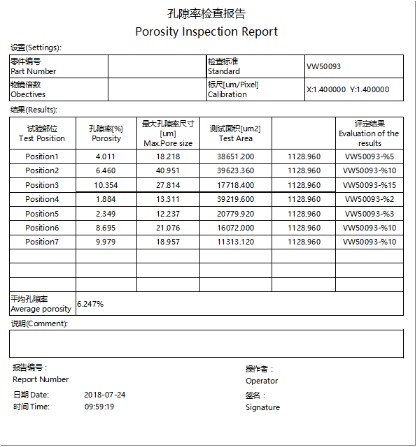

Report Generation:

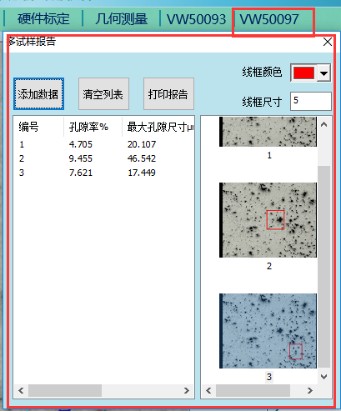

4、Standard VW50097

Multiple field-of-view result reports can be generated simultaneously:

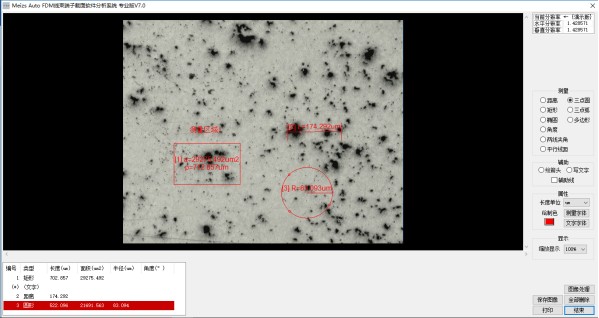

5、Geometric Measurement

Load the image, select the corresponding measuring tool for measurement and labeling. After the measurement is completed, the measurement results will be displayed in the data list.
