Product Description

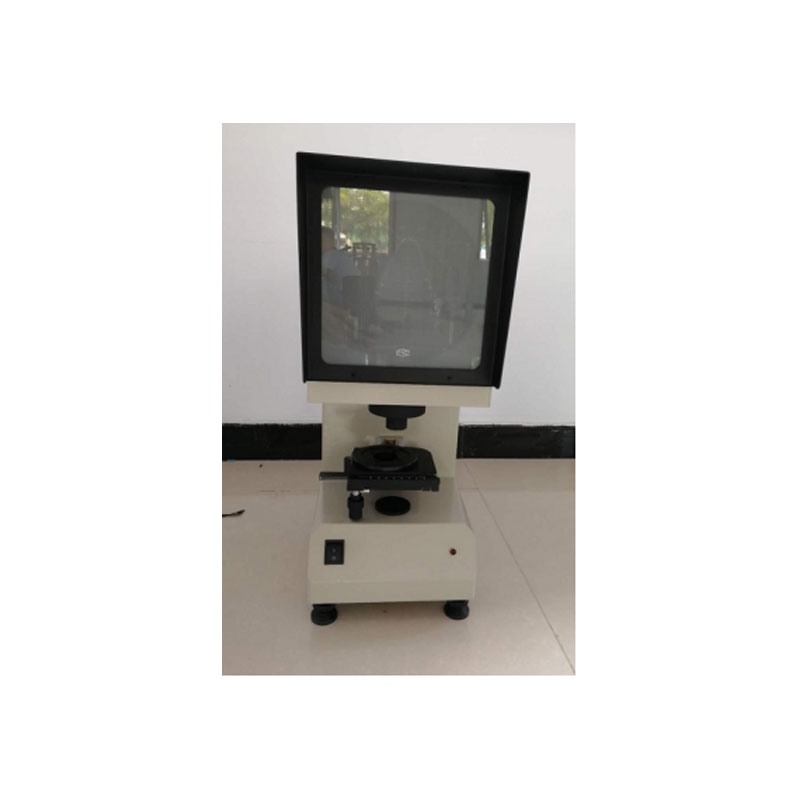

    Model CST-50 Impact Specimen Notch Projector Our company has developed this optical instrument specifically for inspecting the machining quality of Charpy V-type and U-type notches in impact specimens, based on the actual needs of numerous users and the requirements for impact specimen notches specified in GB/T 299-2020 Metallic Materials - Charpy Pendulum Impact Test Method. This instrument uses an optical projection method to magnify the contours of the V-type and U-type notches of the tested impact specimens by 50 times and project them onto the projection screen. By comparing with the standard template diagrams of Charpy V-type and U-type notches for impact specimens on the projection screen, it can be determined whether the notches of the tested specimens are qualified. It has the advantages of simple operation and intuitive comparison, and is an essential special equipment for physical and chemical laboratories.

Technical Specifications

    1. Projection screen diameter: 180mm

      2. Worktable dimensions:

1) Square worktable size: 110×125mm

2) Circular worktable diameter: 90mm

3) Worktable glass diameter: 70mm

3.  Worktable stroke:

1) Longitudinal: ±10mm

2) Transverse: ±10mm

3) Lifting: ±12mm (without scale)

4.  Worktable rotation range: 0~360° (without scale)

5.  Instrument magnification: 50X

1) Objective lens magnification: 2.5X

2) Projection objective lens magnification: 20X

6.  Light source (tungsten-halogen lamp): 12V, 100W

7.  Power supply: 220V, 50Hz

8.  Overall dimensions: 515×224×603mm (length × width × height)

9.  Weight: Approximately 18Kg

Quality Assurance

The three guarantees period for the equipment is one year from the date of official delivery. During the three guarantees period, the supplier shall provide timely and free maintenance services for all types of faults occurring in the equipment. For all types of parts damage not caused by human factors, the supplier shall make timely and free replacement. If the equipment breaks down during use after the warranty period, the supplier shall promptly provide services to the purchaser and actively assist the purchaser in completing the maintenance tasks.
