Project Introduction

JB-W300A microcomputer control pendulum impact test machine is a new product developed in strict accordance with GB / T3038-2002 pendulum impact test machine and GB / T229-2020 metal ratio gap impact test method; it is an ideal testing instrument for measuring the impact resistance of metal material under moving load. The equipment pendulum, impact, pendulum and other actions can be automatically controlled, the display mode is double explicit: that is, the dial pointer and the computer display at the same time, and can print batch or successive impact absorption work and impact toughness and other test results, compact structure, simple operation. The maximum impact energy of the equipment is 300J, and it is equipped with a 150J pendulum hammer.

Protocol Description

The working principle of the equipment is to use the high-precision photoelectric encoder and the computer with special measurement and control and computing software to detect the impact absorption work and the impact toughness of the material by detecting the difference between the impact and after the impact of the pendulum. The display mode is double explicit: that is, the dial pointer and the computer display at the same time. Computer can show shock absorption work, impact toughness, and can test data automatic processing, automatic generation test report, pendulum, return, impact, pendulum action control can be controlled by manual box, can also use the computer program automatically control by the mouse input, and can batch or successive print test results.

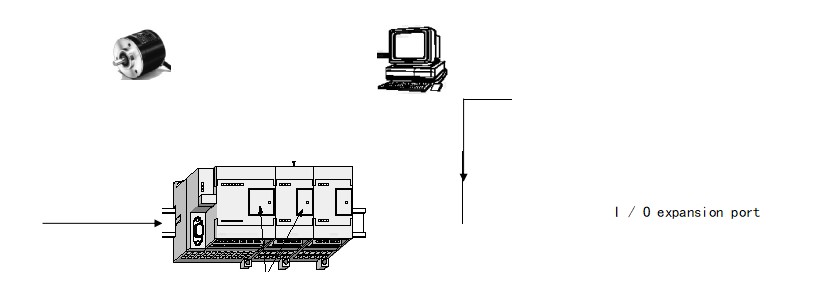

The equipment uses Panasonic PLC as the lower computer control, the brand computer as the upper computer control, the upper computer program adopts VB programming, RS232 communication mode, to complete the data exchange and instruction transmission of the upper and lower computer, and make full use of the powerful functions of the PC for data processing, report processing, etc. The high-precision rotary encoder is used to obtain the real-time position of the pendulum and obtain the shock absorption work. It has the characteristics of system reliability, stability and accurate data.

Technical Specifications

1. The Maximum Impact Energy: 300J

2. Maximum Impact Speed: 5.2m / s

3. Raise Angle: 150 ゜

4. Distance From The Main Axis To The Strike Center: 750mm

5. Sample Base Span: 40mm

6. Arc Radius Of The Sample Support End: R1—1.5mm

7. Arc Radius Of The Impact Knife: R2—2.5mm

8. Impact Knife Two Inclined Plane Angle: 30

9. Impact Knife Thickness: 16mm

10. Minimum Resolution: 0.1J

11. Host Power Supply: 50Hz 380V 250W

12. Weight Of The Equipment: about 480 Kg

13. Motor Power:180W

Major Dispositions

1.Mainframe

(1) High precision photoelectric encoder - one set

(2) Lenovo 19-inch LCD computer - one set

(3) HP printer - one set

(4) Panasonic PLC programmable controller - one set

(5) Professional measurement and control software - one set

2.300J and 150J pendulums - one of each

3.Span adjustment template and sample centering block - one of each

4.Others: User manual, certificate of conformity, packing list -one of each

Introduction To The Software Operation

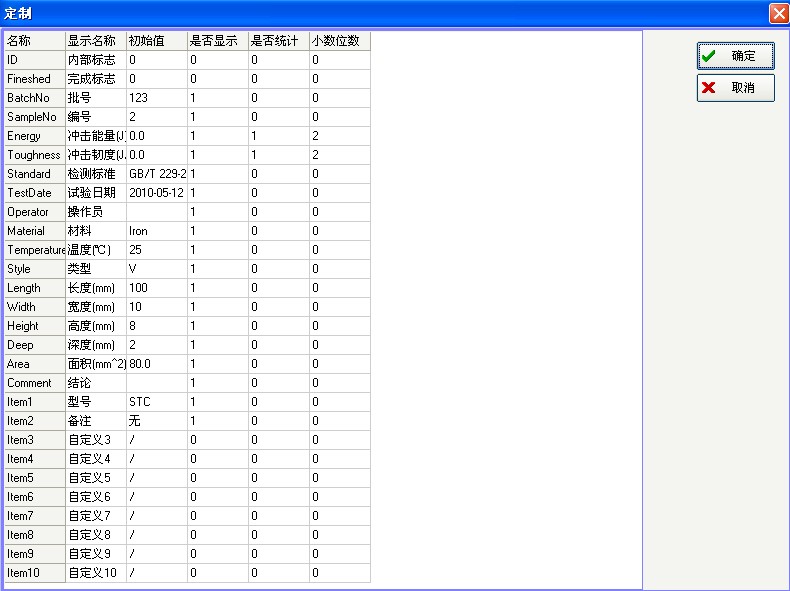

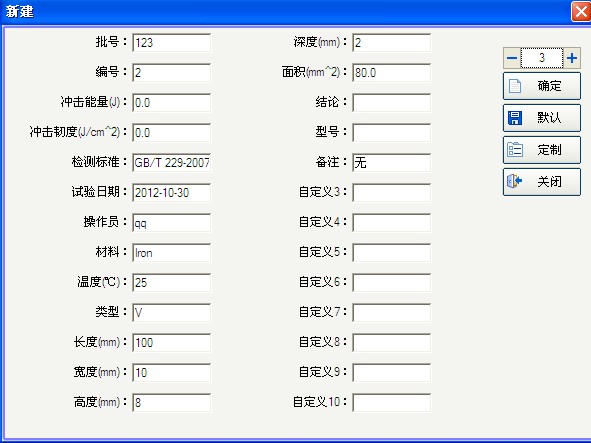

It includes ten parts: new, open, save, system parameters, output to Word, output to Excel, cycle determination, pointer friction, system error, exit.

function:

Find the test record according to the test date, batch number and operator.

method:

Click on the Open button,

In the year, month, day drop-down menu, select to find the test date, click find the test record, sure to view.

Preserve

Function:

After the manual change of the data, it is saved.

Explain:

After the completion of the test, the test data will be automatically saved.

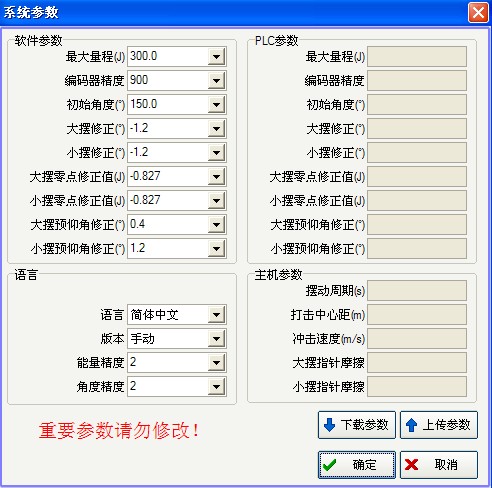

(1) Maximum range, the maximum impact energy of the impact test machine;

(2) Encoder accuracy, that is, the number of encoder lines;

(3) Initial Angle, the Angle when the pendulum is raised to the maximum elevation angle;

(4) Large swing correction, the Angle correction of large swing;

(5) Small pendulum correction, Angle correction of small pendulum;

(6) The zero correction value of large pendulum, and the energy correction of large pendulum during empty impact;

(7) Zero correction value of the small pendulum, energy correction of the small pendulum during empty impact;

(8) Large swing pre-elevation angle correction, adjust the large swing pre-elevation angle;

(9) Small pendulum pre-elevation angle correction, adjust the small pendulum pre-elevation angle;

(10) Language, optional in simplified Chinese and English;

(11) Version, divided into manual feeding, electric feeding and pneumatic feeding;

(12) Energy accuracy, display the decimal number of energy value;

(13) Angle accuracy, display the decimal number of Angle value;

(14) PLC parameters are the same as the functions in the above software parameters;

(15) Host parameters, the parameters calculated by the cycle determination.

Output Report

Function:

Print out test report in Word and Excel formats respectively.

Explain:

This feature requires the computer to install the Word and Excel programs.

Method:

 The test report can modify the data by itself; click "File" and select "Print" to print the Word format report.

Pop up the select Print Excel format report.

Cycle Determination

Function:

The swing period of the pendulum is measured in three times, and then the strike center distance and strike velocity are calculated.

Explain:

The general number of swings is set to 100 times.

Method:

Put the pendulum in the plumb position, make the swing away from an Angle of less than 5 degrees (generally between 4.6 and 5 degrees), then let the pendulum to swing freely, then click the button, enter the test password (password: 123456) press OK, the cycle measurement button is pressed to blue, when the swing button counts to 100 times, the system will automatically calculate the swing cycle of the shock machine, strike center distance and strike speed, and the test results automatically close after 5 seconds. If a record is required, please enter the system parameters to view.

Pointer Friction

Function:

Used to test the impact of air resistance bearing friction on the system during air impact.

Explain:

Generally for two impact, the first with the pointer impact, the second without the pointer impact.

Method:

Click the button to let the pendulum hang, the pointer to 300J / 150J, and then press (the pointer friction button to blue), click, let the pendulum hammer impact twice, two impact after the pointer friction button automatically bounce, the system parameters will automatically show the corresponding zero correction value and pointer friction, so the pendulum hammer zero error is tested.

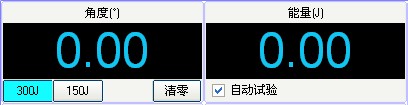

Showing Value Display Bar

1. Angle

Function:

Starting the test, click the swing, and the angle display bar will display the angle value of the swing up until the limit angle; when the impact is complete, display the swing angle until back to zero.

method:

Range selection button; select 300J and 150J.

Angle zero button; when the pendulum is in the natural state, can be cleared, other states can not be cleared.

2. Energy

Function:

Shows the impact energy values generated after the impact.

Results Display Bar

1. Impact Energy

Function:

The maximum impact energy value after the test is shown.

2. Impact Toughness

Function:

Show the impact toughness values after the test.

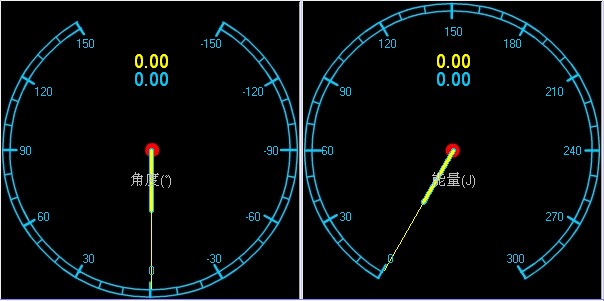

Simulation Degree Disk

1. Angle Display Board

Function:

The angle display board shows the pendulum angle, the blue pointer represents the actual value and the yellow pointer represents the peak.

2. Energy Display Board

Function:

The energy display panel shows real-time energy, with blue pointer representing actual values and yellow pointer representing peak.

Control Panel

1. Hosting

Function:

Raise the pendulum to the maximum elevation angle.

2. Send Materials

Function:

If there is an automatic feeding device, click the feeding device to complete the sample delivery.

3. Return Of Sales

Function:

After the feeding is completed, click back to release the safety pin.

Impact

Function:

Click the impact burst sample.

Fall Swing

Function:

After the test, the pendulum button was shot down and the pendulum returned to the natural state.

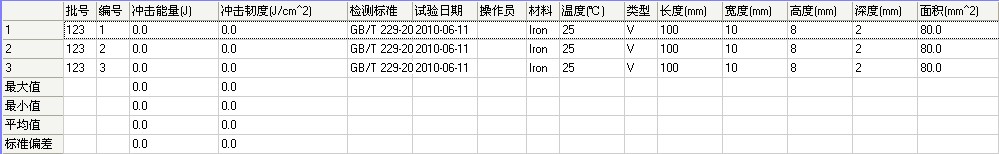

Record And Statistical Area

Function:

Show test outcome data, including impact energy and impact toughness.

Quality Assurance

The equipment shall be deemed to be officially delivered after the formal acceptance by the ordering party. The three guarantees of equipment is one year from the date of formal delivery. During the three guarantees period, the supplier shall timely repair all kinds of equipment faults, and timely replace all kinds of parts caused by non-human damage. If the equipment outside the warranty period fails during use, the supplier shall timely serve the ordering party and actively assist the ordering party to complete the maintenance task.
